Doppler Color Ultrasonic Ultrasonido Portatil SonoScape E2

Ask Lasest Price
Brand Name :	SonoScape
Model Number :	E2

Add to Cart

Product Details
Company Profile

Doppler Color Ultrasonic Ultrasonido Portatil SonoScape E2

Product Description

Doppler color ultrasonico ultrasonido portatil SonoScape E2

1.15.6 inch High Resolution LCD color monitor (with auto-adaptive LED backlight) 2.USB 2.0/Hard Disk 500 G

3.Imaging modes: B/ 2B/4B/ M/ CFM/ PDI/ DirPDI/ PW

Advantage of Sonoscape E2

With 4D OB/GYN, and a full suite of transducers ranging from 2 MHz to 16MHz, the SonoScape E2 portable ultrasound system has the most competitive image quality at its price-point. It is a great solution for private practices, hospitals, mobile services, and clinics looking for a full body machine to use in their office or to share between offices. Its portability allows it to be transferred easily (on or off a mobile cart). The SonoScape E2 is also lightweight and can be carried from room-to-room or office-to-office without any difficulty. A mobile cart makes it easier to transfer from room-to-room and also has a cradle for the transducers. For applications, it is truly unique in this price range. In addition to standard applications and transducers, the SonoScape E2 also has the following capabilities: 4D real-time obstetrical imaging, bi-plane rectal imaging, panoramic imaging, transducers ranging up to 16 MHz... as well as the standard features you'd find on most ultrasound machines. It also has 3 active transducer ports. You can use the SonoScape E2 in nearly every clinical situation, which makes it a great choice for small offices, family practice, or hospitals introducing ultrasound into new departments.

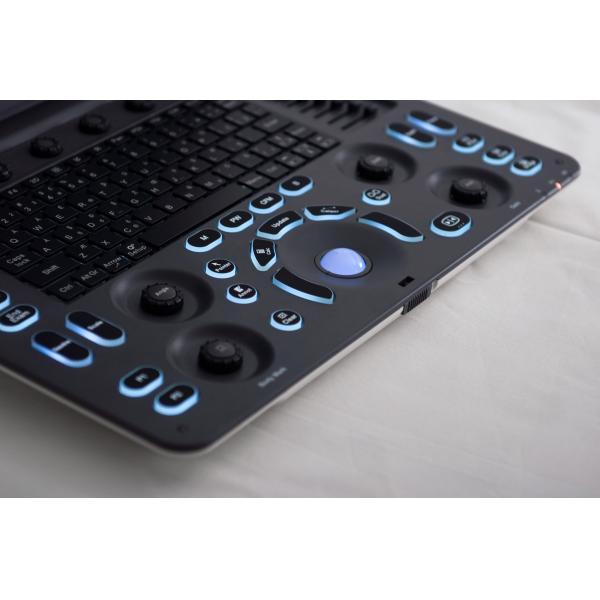

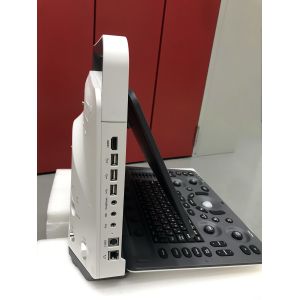

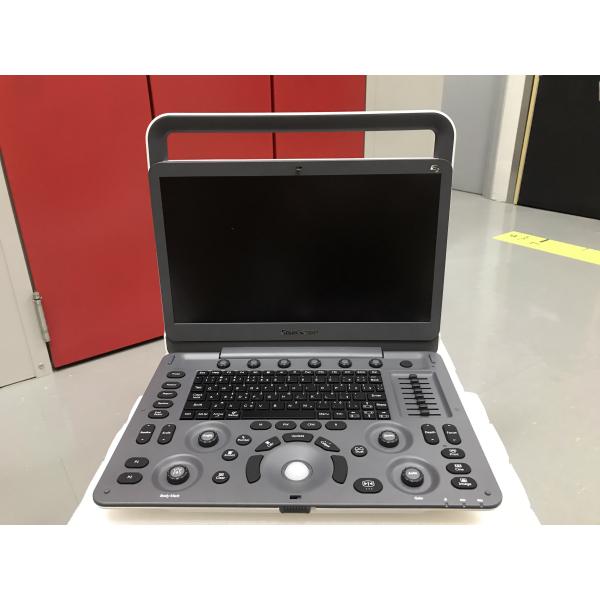

Detailed Images

Technical Specifications

Gain	0-255
Frame rate	106 fps (probe dependent)
Size and position of color ROI	adjustable
Inversion	Up/Down, Left/Right
Flow invert	On/Off
Frequency range	3 steps, adjustable
Hide flow	On/Off (freeze mode)
Wall filter	Min, Low, Med, High, Max adjustable
PRF	0.5 - 10KHz (probe dependent)
Line density	Min, Low, Med, High adjustable
Color/direction energy	7 levels adjustable for color Doppler mode
Color baseline adjustment	9 levels adjustable
Persistence	Off, Low, Med, High, Max selectable (probe dependent)
B reject	0 - 255 adjustable
Linear steer angle	0, ±8°, ±12°, ±16° adjustable
